Pressure Gauge

Hansen EZ-Fittings have a 1/4 ̋ inlet pressure port and come with a factory installed hex head plug. It is strongly suggested that the port be fitted with an MPTxFPT gauge valve, such as the Hansen H7771, to facilitate safer and controlled servicing. The hex head plug should be installed in the gauge valve outlet to prevent accidental refrigerant loss. Alternately, the gauge valve can be fitted with a Hansen HG27 pressure gauge.

This compact pressure gauge features a 2 ̋ (50 mm) diameter face with an easy-to-read dial. The black needle indicates current sensed pressure, and is useful when replacing a valve, determining which relief valve is active, monitoring vessel pressure, or for general system troubleshooting. The red tell-tale needle indicates the highest pressure as seen by the gauge. This can be useful in identifying which relief valve has discharged or has experienced an abnormally high pressure. The tell-tale needle can be easily reset for monitoring purposes.

If a gauge valve is required in your application, please ensure that the option is selected before proceeding with your purchase.

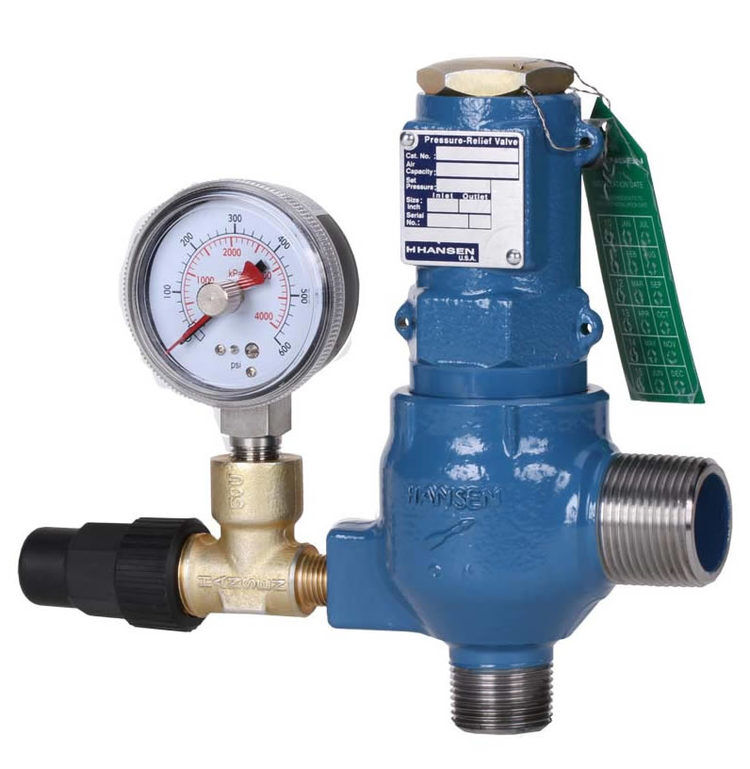

The photo is not indicitive of actual product. Purchases will come with only the pressure gauge, unless a gauge valve is added. Cartridge valves are not included.
