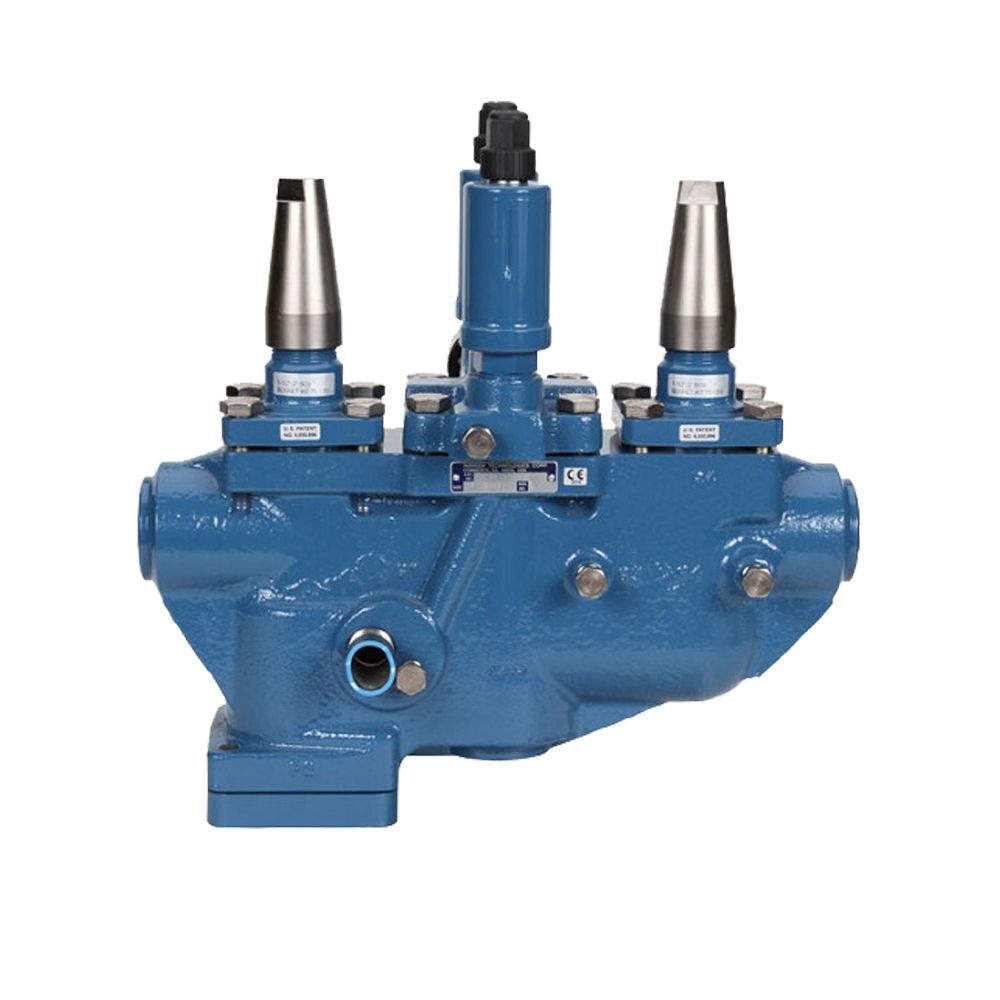

32mm MVP Pressure Regulator with Stop-Check Valve

Hansen Technologies introduces the Multi-Valve Platform (MVP). The MVP is a rugged, compact refrigerant control valve station. Ships pre-tested and assembled for quick and easy installation, requiring only two welds to complete most valve station applications. Hansen control valve functions include solenoid valve, two-step solenoid valve, all common Hansen pressure regulator functions (inlet, outlet, dual pressure, etc), gas powered suction stop (2-1/2" - 4" port sizes) and motorized control valve (1/2" - 4" port sizes). MVP valves use the same pilot modules and internal parts as the standard Hansen pressure regulators and solenoid valves.

Suitable for all approved refrigerants including R717, R134a, R404, R507 and CO2 and comes with a full size 60 mesh strainer. Made from cast steel, the MVP has a safe working pressure of 600Psig (40bar) and a temperature range of -51degrees C to +116 degrees C. The valve station is available in port sizes 20mm through to 50mm, with a socket weld connection style. This product is MVP station with a pressure regulator control valve and comes with a Stop-Check Valve in position four.

Listed below are the applications available for Position 4 on the platform:

• Shut-off valve
• Stop-Check Valve
• Check Valve

The remaining positions are filled with the below applications;

• Position 1- Shut-Off Valve
• Position 2- Strainer in standard 60 mesh
• Position 3- Pressure Regulator Control Valve*

*Please specify which Pressure Regulator Control Valve function is desired. Be aware that there will be a price increase, depending on the selection.

For more infomation on selection and application of the Multi-Valve Platform, please visit Hansen's website to access product bulletins.
