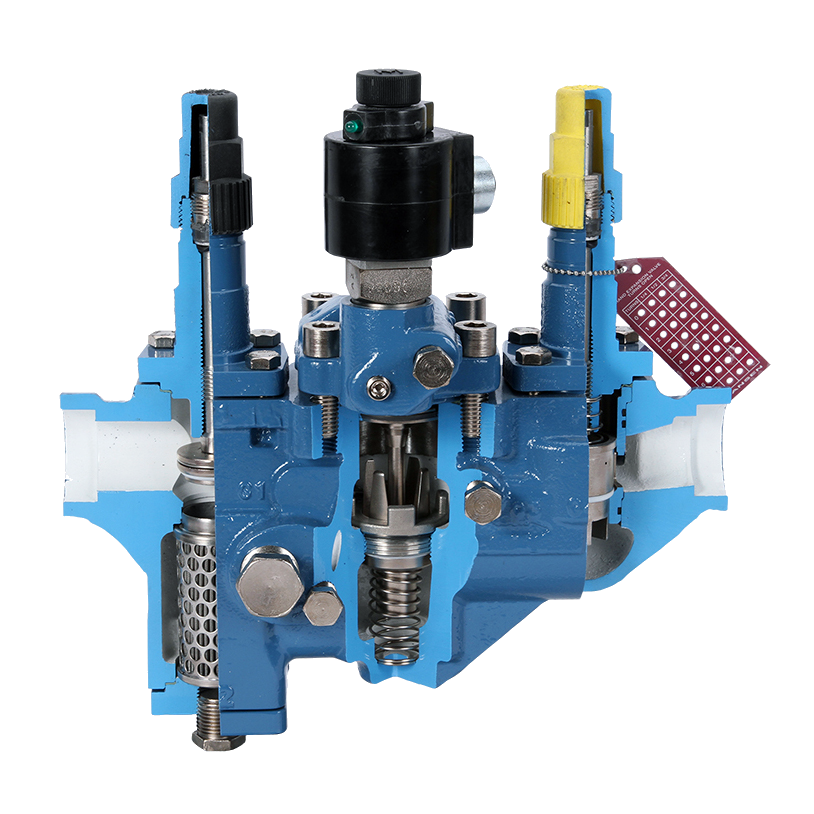

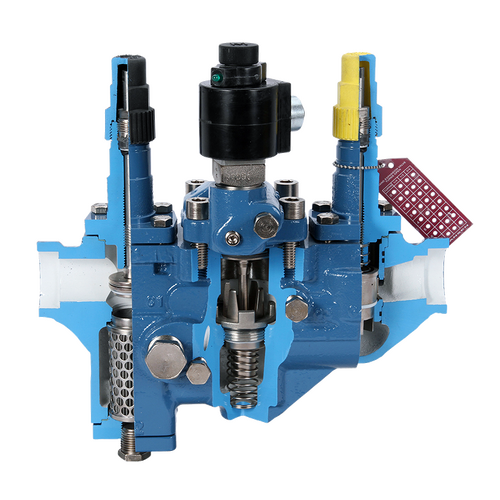

20mm Solenoid MVP

Hansen Technologies introduces the Multi-Valve Platform (MVP). The MVP is a rugged, compact refrigerant control valve station. Ships pre-tested and assembled for quick and easy installation, requiring only two welds to complete most valve station applications. Hansen control valve functions include solenoid valve, two-step solenoid valve, all common Hansen pressure regulator functions (inlet, outlet, dual pressure, etc), gas powered suction stop (2-1/2" - 4" port sizes) and motorized control valve (1/2" - 4" port sizes). MVP valves use the same pilot modules and internal parts as the standard Hansen pressure regulators and solenoid valves.

Suitable for all approved refrigerants including R717, R134a, R404, R507 and CO2 and comes with a full size 100 mesh strainer. Made from cast steel, the MVP has a safe working pressure of 600Psig (40bar) and a temperature range of -51degrees C to +116 degrees C. The valve station is available in port sizes 13mm through to 50mm, with a socket weld connection style. This product is MVP station with a solenoid control valve.

Listed below are the applications available for Position 4 on the platform:

• Shut-off valve
• Hand expansion valve
• Stop-check/Hand Expansion valve
• Stop-Check Valve
• Check Valve
• Blank Cover
• Motorised Control Valve*

The remaining positions are filled with the below applications;

• Position 1- Shut-Off Valve
• Position 2- Strainer in standard 60 mesh
• Position 3- HS4A Solenoid Control Valve**

*The Motorised Control Valve is not included in this product. It must be purchaced seperatly.

**Please specify the voltage capacity required for the HS4A Solenoid Control Valve. The default is 115V.
