SKU: HOTV-50-A

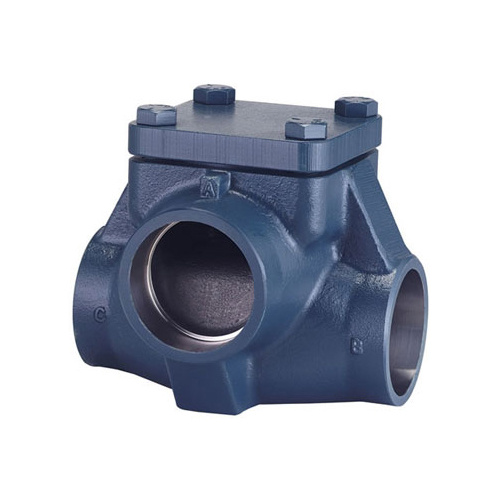

50mm Oil Temperature Valve

Range A

$4,197.64

Sold Out - Backorder Available

Temperature Setting


Description

The Hansen Oil Temperature Valve is a 3-way mixing valve used to accurately control the oil temperature of screw compressors or other oil-cooling circuits within appropriate design parameters. The internal thermostatic element modulates to maintain a near constant temperature at the outlet of the valve. As oil and refrigerant are circulated through the screw compressor, the oil is heated. The hot oil is fed to the valve and it is also fed to a heat exchanger, which provides cold oil to the opposite side of the valve. The thermostatic element modulates the flow of oil from the cold oil port and the hot oil port to maintain the nominal temperature setting at the outlet.

Sizing for this valve ranges from 25mm to 80mm, with varying temperature ranges available for each size. Please consult the table to aid in selection. Sizes 25mm to 40mm come with a standard socket weld connection style, while the remaining larger sizes are only available in butt-weld connection.



Specifications

SKU HOTV-50
Brand Hansen Technologies Corporation
Shipping Weight 7.0000kg
